Designations

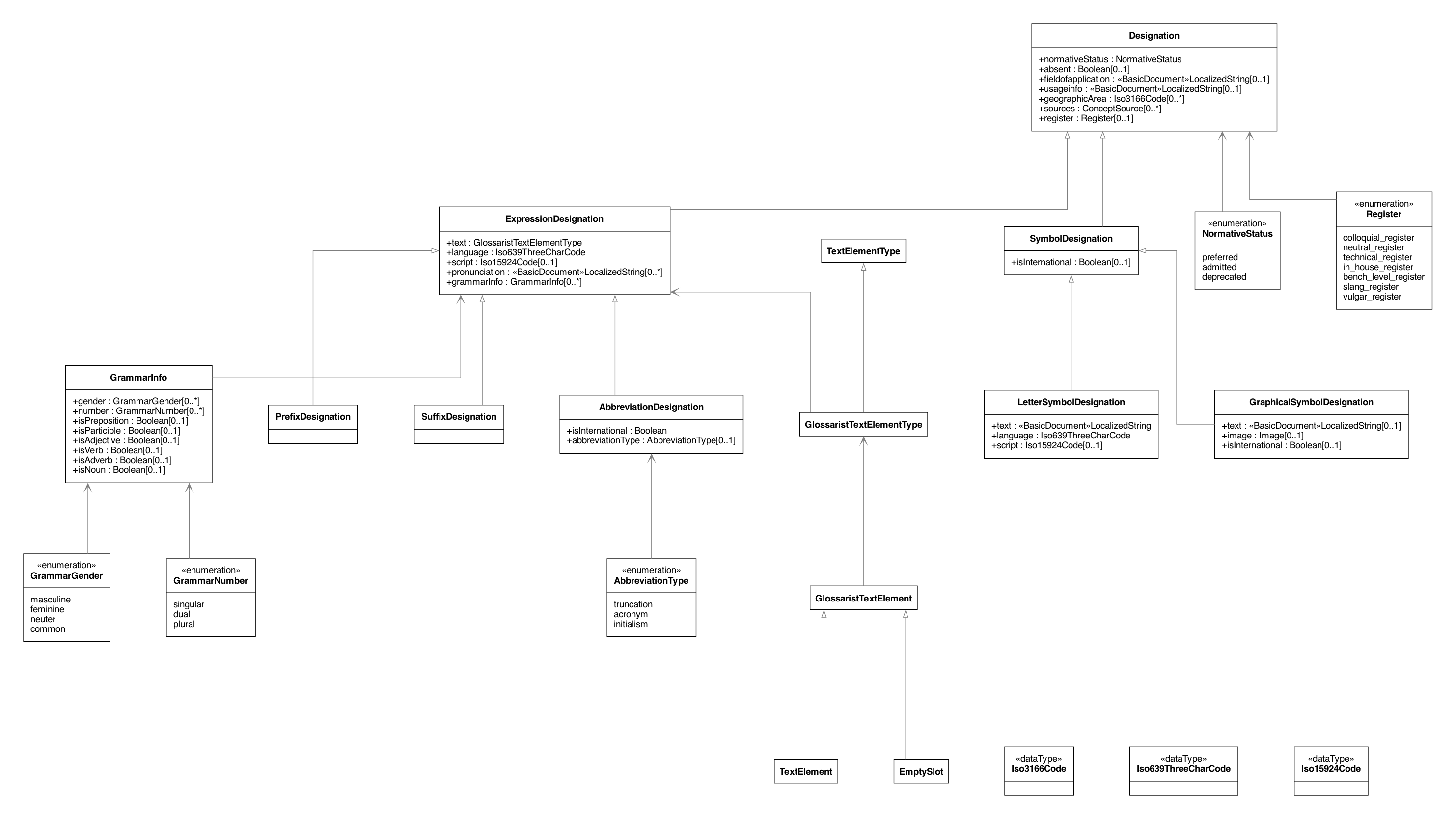

Designations UML

A designation is a name under which a managed term is known. Designations follow an inheritance hierarchy based on ISO 10241-1 and the Glossarist concept model.

Designations form a MECE (Mutually Exclusive, Collectively Exhaustive) hierarchy:

TypeExtendsDescription
expressionBaseA word or phrase used as a designation
abbreviationExpressionA shortened form (acronym, initialism, or truncation)
symbolBaseA non-letter symbol representing a concept
letter_symbolSymbolA single letter used as a symbol
graphical_symbolSymbolAn iconic or graphical symbol
prefixBaseA prefix that attaches before a designation
suffixBaseA suffix that attaches after a designation

Base properties (common to all types)

PropertyStandardDescription
designationThe term text or symbol
normative_statuspreferred, admitted, deprecated, or superseded
geographical_areaISO 3166-1Geographic usage region
languageISO 639Language of this designation
scriptISO 15924Script of the designation text (e.g. Latn, Cyrl)
systemISO 24229Conversion system code
internationalWhether used internationally
absentWhether intentionally absent in this language
pronunciationCollection of Pronunciation entries
sourcesISO 10241-1 §6.8Collection of ConceptSource entries
term_typeISO 12620Optional classification of the designation's term type
relatedCollection of RelatedConcept for designation-level relationships
registerRegister information

Pronunciation

Each Pronunciation entry has:

AttributeStandardDescription
contentThe pronunciation text
languageISO 639Language/dialect being pronounced (3-letter code)
scriptISO 15924Script of the pronunciation text (4-letter code)
countryISO 3166-1Country variant (2-letter code, optional)
systemISO 24229Conversion system code (e.g. IPA, Var:jpn-Hrkt:Latn:Hepburn-1886)
